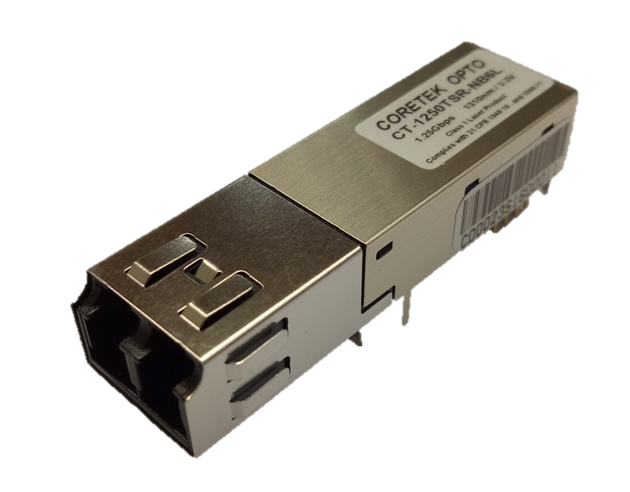

SFF

Download file

OC-3(155M)/MM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-0155NSR-Mx2L	1310/LED	2	0 ~ 70
CT-0155NSR-Mx2L-A	1310/LED	2	-40 ~ 85

OC-3(155M)/SM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-0155TSR-Mx5L	1310/FP	15	0 ~ 70
CT-0155TSR-Mx5L-A	1310/FP	15	-40 ~ 85
CT-0155TSR-Mx6L	1310/FP	40	0 ~ 70
CT-0155TSR-Mx6L-A	1310/FP	40	-40 ~ 85
CT-0155TSR-Mx7L	1310/FP	60	0 ~ 70
CT-0155TSR-Mx7L-A	1310/FP	60	-40 ~ 85
CT-0155TSR-Kx8L	1550/DFB	80	0 ~ 70
CT-0155TSR-Kx8L-A	1550/DFB	80	-40 ~ 85
CT-0155TSR-Kx9L	1550/DFB	100	0 ~ 70
CT-0155TSR-Kx9L-A	1550/DFB	100	-40 ~ 85
CT-0155TSR-KxAL	1550/DFB	120	0 ~ 70
CT-0155TSR-KxAL-A	1550/DFB	120	-40 ~ 85

OC-12(622M)/SM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-0622TSR-ME5L	1310/FP	15	0 ~ 70
CT-0622TSR-ME5L-A	1310/FP	15	-40 ~ 85
CT-0622TSR-ME6L	1310/FP	40	0 ~ 70
CT-0622TSR-NE6L-A	1310/DFB	40	-40 ~ 85
CT-0622TSR-KE8L	1550/DFB	80	0 ~ 70
CT-0622TSR-KE8L-A	1550/DFB	80	-40 ~ 85

GbE(1.25G)/MM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-1250NSR-SB1L	850/VCSEL	0.5	0 ~ 70
CT-1250NSR-SB1L-A	850/VCSEL	0.5	-40~85
CT-1250TSR-MB2L	1310/FP	2	0 ~ 70

GbE(1.25G)/SM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-1250TSR-MB4L	1310/FP	10	0 ~ 70
CT-1250TSR-MB4L-A	1310/FP	10	-40 ~ 85
CT-1250TSR-NB6L	1310/DFB	40	0 ~ 70
CT-1250TSR-NB6L-A	1310/DFB	40	-40 ~ 85
CT-1250TSR-KB6L	1550/DFB	40	0 ~ 70
CT-1250TSR-KB6L-A	1550/DFB	40	-40 ~ 85
CT-1250TSR-KB8L	1550/DFB	70	0 ~ 70
CT-1250TSR-KB8L-A	1550/DFB	70	-40 ~ 85

FC(2.125G)/MM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-2125NSR-SB1L	850/VCSEL	¡Ø0.5	0 ~ 70
CT-2125NSR-SB1L-A	850/VCSEL	¡Ø0.5	-40 ~ 85

FC(2.125G)/SM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-2125TSR-MB4L	1310/FP	10	0 ~ 70
CT-2125TSR-NB6L	1310/DFB	50	0 ~ 70
CT-2125TSR-KB8L	1550/DFB	80	0 ~ 70

OC-48(2.488G)/MM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-2500NSR-SB1L	850/VCSEL	¡Ø0.5	0 ~ 70
CT-2500NSR-SB1L-A	850/VCSEL	¡Ø0.5	-40 ~ 85

OC-48(2.488G)/SM/Multi-rate

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-2500TSR-MB2L	1310/FP	2	0 ~ 70
CT-2500TSR-MB2L-A	1310/FP	2	-40 ~ 85
CT-2500TSR-NB5L	1310/DFB	15	0 ~ 70
CT-2500TSR-NB5L-A	1310/DFB	15	-40 ~ 85

OC-3(155M)/MM

MORE

Part Number Wavelength(nm) Distance(km) Temperature(¢J) DDMI Datasheet

CT-0155NS7-ME2L-E 1310/LED 2 -40 ~ 85 With

OC-3(155M)/SM

MORE

Part Number Wavelength(nm) Distance(km) Temperature(¢J) DDMI Datasheet

CT-0155TS7-ME5L-E 1310/FP 15 -40 ~ 85 With

GbE(1.25G)/MM

MORE

Part Number Wavelength(nm) Distance(km) Temperature(¢J) DDMI Datasheet

CT-1250NS7-SB1L-E 850/VCSEL 0.5 -40 ~ 85 With

GbE(1.25G)/SM

MORE

Part Number Wavelength(nm) Distance(km) Temperature(¢J) DDMI Datasheet

CT-1250TS7-MB4L-E 1310/FP 10 -40 ~ 85 With

OC-3(155M)/MM

Part Number	Wavelength(nm)	Output Power(dBm)	Temperature(¢J)	Datasheet
CT-0155NFR-ME2L	1310/LED	-19 ~ -14	0 ~ 70

OC-12(622M)/SM

Part Number	Wavelength(nm)	Output Power(dBm)	Temperature(¢J)	Datasheet
CT-0622TFR-ME5L	1310/FP	-15 ~ -8	0 ~ 70

FC(2.125G)/SM

Part Number	Wavelength(nm)	Output Power(dBm)	Temperature(¢J)	Datasheet
CT-2125TFR-MB4L	1310/FP	-8 ~ -2	0 ~ 70
CT-2125TFR-MB4L-A	1310/FP	-8 ~ -2	-40 ~ 85

OC-3(155M)/MM

Part Number	Wavelength(nm)	Sensitivity(dBm)	Temperature(¢J)	Datasheet
CT-0155NRR-MB2L	1310	¡Ø-32	0~70

OC-12(622M)/SM

Part Number	Wavelength(nm)	Sensitivity(dBm)	Temperature(¢J)	Datasheet
CT-0622TRR-ME5L	1310	¡Ø-28	0~70

FC(2.125G)/SM

Part Number	Wavelength(nm)	Sensitivity(dBm)	Temperature(¢J)	Datasheet
CT-2125TRR-MB4L	1310	¡Ø-23	0~70
CT-2125TRR-MB4L-A	1310	¡Ø-23	-40~85

GbE(1.25G)/MM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-1250NS8-SS1L	850/VCSEL	0.5	0~70
CT-1250NS8-SS1L-A	850/VCSEL	0.5	-40~85

GbE(1.25G)/SM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-1250TS8-MS4L	1310/FP	10	0~70
CT-1250TS8-MS4L-A	1310/FP	10	-40~85

SFF 2x5 TRX - OC-3(155M)/SM

Part Number	Wavelength(nm)	Power Budget(dB)	Temperature(¢J)	Datasheet
CT-0155TSR-Cx8L	CWDM	80	0 ~ 70
CT-0155TSR-Cx9L	CWDM	100	0 ~ 70
CT-0155TSR-CxAL	CWDM	120	0 ~ 70

GbE(1.25G)/SM

Part Number	Wavelength(nm)	Power Budget(dB)	Temperature(¢J)	Datasheet
CT-1250TSR-CB6L	CWDM	19	0 ~ 70
CT-1250TSR-CB8L	CWDM	24	0 ~ 70

SFF 2x5 TRX

OC-3(155M)/MM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-0155NSR-Mx2L	1310/LED	2	0 ~ 70
CT-0155NSR-Mx2L-A	1310/LED	2	-40 ~ 85

OC-3(155M)/SM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-0155TSR-Mx5L	1310/FP	15	0 ~ 70
CT-0155TSR-Mx5L-A	1310/FP	15	-40 ~ 85
CT-0155TSR-Mx6L	1310/FP	40	0 ~ 70
CT-0155TSR-Mx6L-A	1310/FP	40	-40 ~ 85
CT-0155TSR-Mx7L	1310/FP	60	0 ~ 70
CT-0155TSR-Mx7L-A	1310/FP	60	-40 ~ 85
CT-0155TSR-Kx8L	1550/DFB	80	0 ~ 70
CT-0155TSR-Kx8L-A	1550/DFB	80	-40 ~ 85
CT-0155TSR-Kx9L	1550/DFB	100	0 ~ 70
CT-0155TSR-Kx9L-A	1550/DFB	100	-40 ~ 85
CT-0155TSR-KxAL	1550/DFB	120	0 ~ 70
CT-0155TSR-KxAL-A	1550/DFB	120	-40 ~ 85

OC-12(622M)/SM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-0622TSR-ME5L	1310/FP	15	0 ~ 70
CT-0622TSR-ME5L-A	1310/FP	15	-40 ~ 85
CT-0622TSR-ME6L	1310/FP	40	0 ~ 70
CT-0622TSR-NE6L-A	1310/DFB	40	-40 ~ 85
CT-0622TSR-KE8L	1550/DFB	80	0 ~ 70
CT-0622TSR-KE8L-A	1550/DFB	80	-40 ~ 85

GbE(1.25G)/MM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-1250NSR-SB1L	850/VCSEL	0.5	0 ~ 70
CT-1250NSR-SB1L-A	850/VCSEL	0.5	-40~85
CT-1250TSR-MB2L	1310/FP	2	0 ~ 70

GbE(1.25G)/SM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-1250TSR-MB4L	1310/FP	10	0 ~ 70
CT-1250TSR-MB4L-A	1310/FP	10	-40 ~ 85
CT-1250TSR-NB6L	1310/DFB	40	0 ~ 70
CT-1250TSR-NB6L-A	1310/DFB	40	-40 ~ 85
CT-1250TSR-KB6L	1550/DFB	40	0 ~ 70
CT-1250TSR-KB6L-A	1550/DFB	40	-40 ~ 85
CT-1250TSR-KB8L	1550/DFB	70	0 ~ 70
CT-1250TSR-KB8L-A	1550/DFB	70	-40 ~ 85

FC(2.125G)/MM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-2125NSR-SB1L	850/VCSEL	¡Ø0.5	0 ~ 70
CT-2125NSR-SB1L-A	850/VCSEL	¡Ø0.5	-40 ~ 85

FC(2.125G)/SM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-2125TSR-MB4L	1310/FP	10	0 ~ 70
CT-2125TSR-NB6L	1310/DFB	50	0 ~ 70
CT-2125TSR-KB8L	1550/DFB	80	0 ~ 70

OC-48(2.488G)/MM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-2500NSR-SB1L	850/VCSEL	¡Ø0.5	0 ~ 70
CT-2500NSR-SB1L-A	850/VCSEL	¡Ø0.5	-40 ~ 85

OC-48(2.488G)/SM/Multi-rate

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-2500TSR-MB2L	1310/FP	2	0 ~ 70
CT-2500TSR-MB2L-A	1310/FP	2	-40 ~ 85
CT-2500TSR-NB5L	1310/DFB	15	0 ~ 70
CT-2500TSR-NB5L-A	1310/DFB	15	-40 ~ 85

SFF 2x7 TRX

OC-3(155M)/MM

MORE

Part Number Wavelength(nm) Distance(km) Temperature(¢J) DDMI Datasheet

CT-0155NS7-ME2L-E 1310/LED 2 -40 ~ 85 With

OC-3(155M)/SM

MORE

Part Number Wavelength(nm) Distance(km) Temperature(¢J) DDMI Datasheet

CT-0155TS7-ME5L-E 1310/FP 15 -40 ~ 85 With

GbE(1.25G)/MM

MORE

Part Number Wavelength(nm) Distance(km) Temperature(¢J) DDMI Datasheet

CT-1250NS7-SB1L-E 850/VCSEL 0.5 -40 ~ 85 With

GbE(1.25G)/SM

MORE

Part Number Wavelength(nm) Distance(km) Temperature(¢J) DDMI Datasheet

CT-1250TS7-MB4L-E 1310/FP 10 -40 ~ 85 With

SFF 2x5 Dual TX

OC-3(155M)/MM

Part Number	Wavelength(nm)	Output Power(dBm)	Temperature(¢J)	Datasheet
CT-0155NFR-ME2L	1310/LED	-19 ~ -14	0 ~ 70

OC-12(622M)/SM

Part Number	Wavelength(nm)	Output Power(dBm)	Temperature(¢J)	Datasheet
CT-0622TFR-ME5L	1310/FP	-15 ~ -8	0 ~ 70

FC(2.125G)/SM

Part Number	Wavelength(nm)	Output Power(dBm)	Temperature(¢J)	Datasheet
CT-2125TFR-MB4L	1310/FP	-8 ~ -2	0 ~ 70
CT-2125TFR-MB4L-A	1310/FP	-8 ~ -2	-40 ~ 85

SFF 2x5 Dual RX

OC-3(155M)/MM

Part Number	Wavelength(nm)	Sensitivity(dBm)	Temperature(¢J)	Datasheet
CT-0155NRR-MB2L	1310	¡Ø-32	0~70

OC-12(622M)/SM

Part Number	Wavelength(nm)	Sensitivity(dBm)	Temperature(¢J)	Datasheet
CT-0622TRR-ME5L	1310	¡Ø-28	0~70

FC(2.125G)/SM

Part Number	Wavelength(nm)	Sensitivity(dBm)	Temperature(¢J)	Datasheet
CT-2125TRR-MB4L	1310	¡Ø-23	0~70
CT-2125TRR-MB4L-A	1310	¡Ø-23	-40~85

Mini SFF 1x8 TRX

GbE(1.25G)/MM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-1250NS8-SS1L	850/VCSEL	0.5	0~70
CT-1250NS8-SS1L-A	850/VCSEL	0.5	-40~85

GbE(1.25G)/SM

Part Number	Wavelength(nm)	Distance(km)	Temperature(¢J)	Datasheet
CT-1250TS8-MS4L	1310/FP	10	0~70
CT-1250TS8-MS4L-A	1310/FP	10	-40~85

CWDM

SFF 2x5 TRX - OC-3(155M)/SM

Part Number	Wavelength(nm)	Power Budget(dB)	Temperature(¢J)	Datasheet
CT-0155TSR-Cx8L	CWDM	80	0 ~ 70
CT-0155TSR-Cx9L	CWDM	100	0 ~ 70
CT-0155TSR-CxAL	CWDM	120	0 ~ 70

GbE(1.25G)/SM

Part Number	Wavelength(nm)	Power Budget(dB)	Temperature(¢J)	Datasheet
CT-1250TSR-CB6L	CWDM	19	0 ~ 70
CT-1250TSR-CB8L	CWDM	24	0 ~ 70
