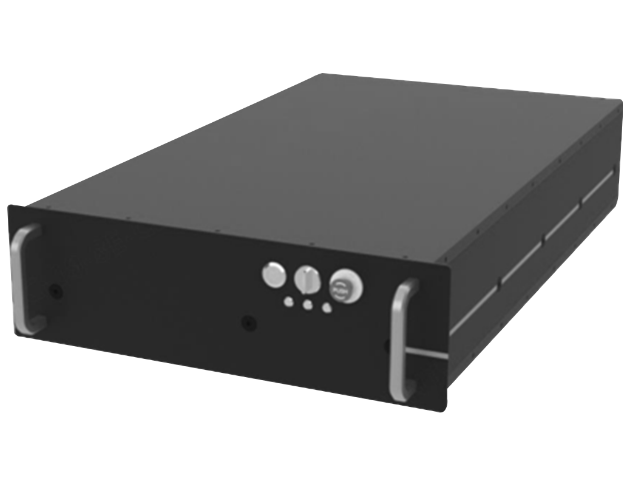

CTK-DC7000
CTK-DC7000 Multi-mode Laser 7000W for Laser Cladding
Description：
￭ Flat-top beam which is suitable for metal
laser cladding with 7kW high output.
￭ Simplified control interface
￭ Easy maintenance operation
￭ High power, high efficiency, high reliability
Typical Application :
￭ Metal welding
￭ Metal surface processing
￭ Laser cladding of metal
| Storage & Operation requirements | ||
| Working Environment Temperature | 10~40℃ | |
| Working Environment Humidity | <70% | |
| Storage Temperature | -10~60℃ | |
| Required Minimum Cooling Capacity | >15kW | |
| Cooling Water Temperature | 25±1℃ for Laser, 30℃ for QBH | |
| Required Cooling Water Flow | >60 L/min for Laser, 1.5~2 L/min for QBH | |
| Water Pipe Size | for Laser | φ25mm Explosion proof tube φ6mm*4mm PU tube |
| for QBH | ||
| Water Pressure Range | 3~5bar | |
| OPTICAL CHARACTER | |
| Power | 7000 W |
| Wavelength | 976 nm ± 20nm |
| Output Cable Length | 10 m (Typical) |
| Output Cable Connector (Core Diameter) | QBH (800um, Typical) |
| Beam Quality M² | N/A |
| Aiming Beam | Red |
| Operation Mode | CW / Pulse |
| Polarization | Random |
| Power Stability (25℃) | >97% (2h) |
| Power Adjustment Scope | 10% - 100% |
| Max Modulation Frequency | 5 kHz |
| MECHANICAL CHARACTER | |
| Physical Size (H X W x D) | 145 mm x 468 mm x 751 mm |
| Weight | <65 Kg |
| Cooling Method | Water Cooling |
| ELECTRONIC CHARACTER | |
| Power Supply (external) | AC 380V ± 10%, 50/60 Hz |
| Power Consumption | 18kW |
| Control Interface | RS232 / DB25 |
