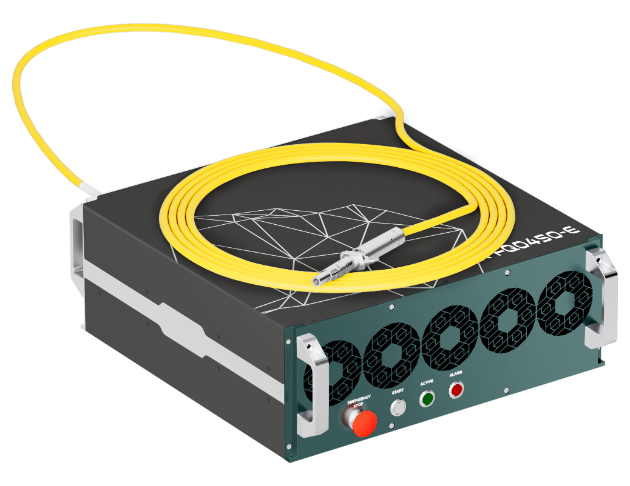

1080nm QCW Laser Source - 450W
1080nm QCW Laser Source - 450W
Description：
￭ Replace the YAG laser
￭ Average power 450W
￭ Peak power 4500W
￭ Single pulse energy 45J
￭ Reshape pulse waveform
￭ Single-mode/Multi-mode optional
￭ Maintenance-free
Typical Application :
￭ Precision Cutting
￭ Ceramic Scribing/Cutting
￭ Spot Welding
￭ Seam Welding
￭ Laser Drilling
￭ Laser Marking
| Storage & Operation requirements | |
| Working Environment Temperature | 10~40℃ |
| Working Environment Humidity | <70% |
| Storage Temperature | -10~60℃ |
| OPTICAL CHARACTER | |
| Power | 450 W@CW / 450W@Pulse |
| Wavelength | 1080 nm ± 10nm |
| Output Cable Length | 5 m (Typical) |
| Output Cable Connector (Core Diameter) | QBH (14um) |
| Beam Quality M² | <1.6 |
| Aiming Beam | Red |
| Operation Mode | CW / Pulse |
| Polarization | Random |
| Power Stability (25℃) | >97% (2h) |
| Power Adjustment Scope | 10% - 100% |
| Max Modulation Frequency | <20kHz |
| MECHANICAL CHARACTER | |
| Physical Size (H X W x D) | 280 mm x 560 mm x 500 mm |
| Weight | <60 Kg |
| Cooling Method | Air cooling |
| ELECTRONIC CHARACTER | |
| Power Supply | AC 220V ± 10%, 50/60 Hz |
| Power Consumption | <1.8 kW |
| Control Interface | RS232 / DB25 |
